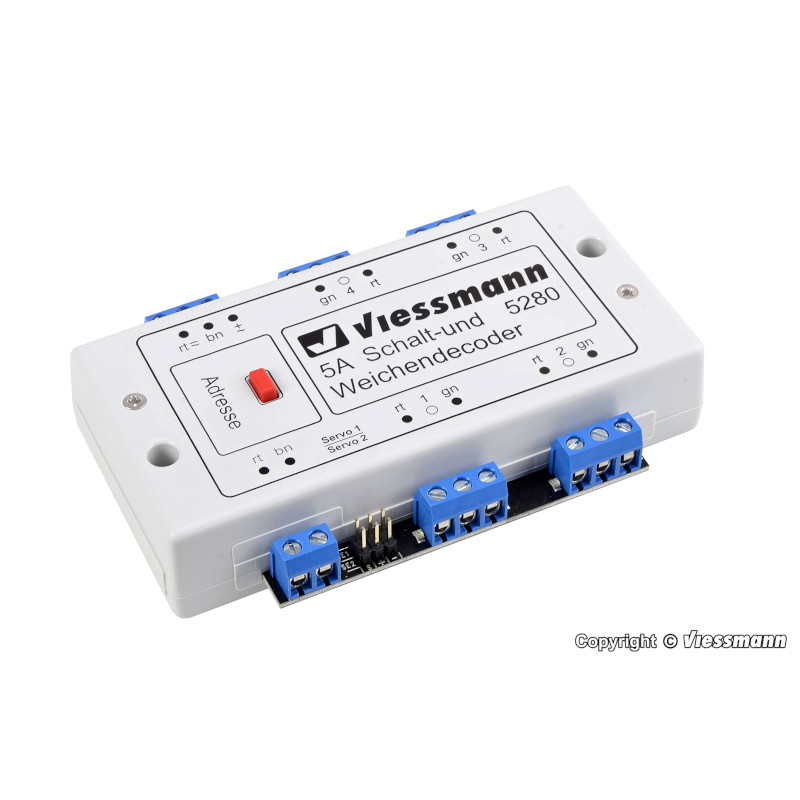

Multi protocol switching and turnout decoder

<p>The decoder is a multi-protocol decoder for the DCC and Märklin-Motorola formats.</p>
<p>It is designed as a turnout decoder for 4 double-coil turnouts and additionally controls 2 servos. It features 4 output pairs that can also be configured for special functions. This allows for various lighting effects, such as blinking for construction site lighting or advertising. At the turnout outputs, the decoder detects the position of turnouts with end-position cutoff if configured accordingly and reports this position via RailCom.</p>
<ul>
    <li>4 pairs of turnout outputs (double coil)</li>
    <li>Outputs also configurable as single outputs, positively switched</li>
    <li>Power supply either from the track signal or via external supply for the load to be switched</li>
    <li>Various output functions: pulse, continuous, blinking, dimming, signals, random control (also for the servo outputs)</li>
    <li>Switching current up to 5 A per output, total decoder current max. 5 A</li>
    <li>With E-connector for supplying switching current via a separate transformer</li>
    <li>Maximum total decoder current adjustable</li>
    <li>LEDs on the outputs indicate the switching command</li>
    <li>Track input, programming on the programming track, programming on the main track (POM), address programming also via push button, RailCom</li>
    <li>Servo outputs configurable for travel range and speed. Total supply current for both servos: 300 mA continuous, 450 mA short-term</li>
    <li>With screw terminals</li>
</ul>
