Universal electronics for bus

The universal electronics for buses offer compact solutions for retrofitting coach and transit buses with the proven driving characteristics of CarMotion trucks.
The slim module (W 12.5 mm x L 26.5 mm) is particularly suited for tight installation spaces and operates in conjunction with the H0 gearbox and motor, VI8426.
Power is supplied by one 120 mAh rechargeable battery included in the set.

This module is designed exclusively for use with this specific motor and battery configuration.
An additional trim-to-size distribution board (approx.. W 7 mm x L 25 mm) can be shortened to L 17 mm and facilitates the connection of LEDs for lighting purposes and enables extra lighting effects.
An expansion interface is provided for additional modules. The LEDs and the sensors come pre-wired with enamelled wires, making installation straightforward.
Expansion kits for further lighting effects will be available in the future.

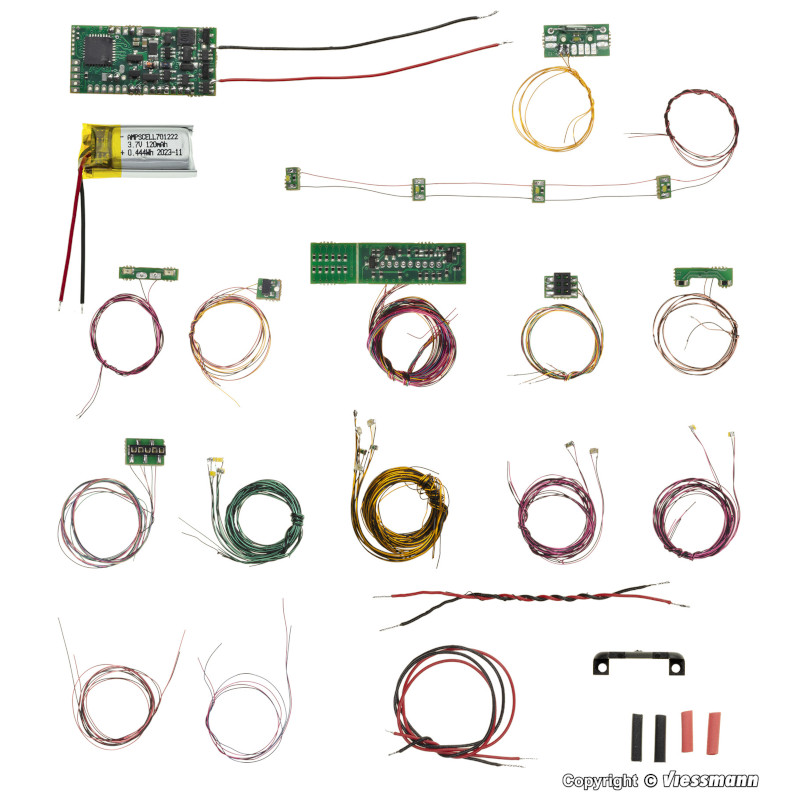

Set includes:
Main board, distribution board, Hall sensor, charging and programming socket, rechargeable battery, mini board with IR transmitter, mini board with IR receiver, mini board with reed switch and driver’s cab lighting, 4 mini boards for interior bus lighting, mini board with trailer connector.
