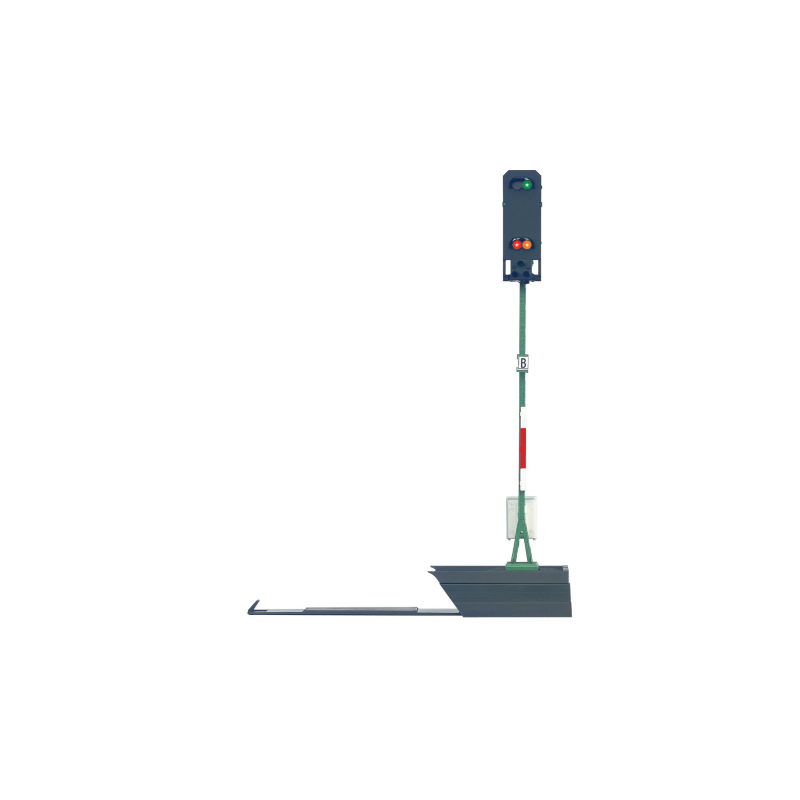

Color Light Home Signal (H0)
- Brand: Märklin
- Product Code: M76493
- Availability:Out Of Stock
- Stock level:
-
Price: 89.99€
- Ex Tax: 74.37€
Delivery times: undefined
General Product Safety Regulation
Manufacturer:Gebr. Märklin & Cie. GmbH
Stuttgarter Straße 55-57
73033
Göppingen
Germany
+49 (0)7161 608-0
service@maerklin.de
Responsible person within the EU:
Gebr. Märklin & Cie. GmbH
Stuttgarter Straße 55-57
73033
Göppingen
Germany
+49 (0)7161 608-0
service@maerklin.de
Description
Prototype:German Federal Railroad (DB) standard design entry signal.
3 settings: "Stop" - red (Hp0), "Proceed" - green (Hp1) and "Proceed Slowly" - green/yellow (Hp2).
Model:
he signal has an integrated electronic signal circuit and 1 separate signal decoder.
Control of all functions is possible in the digital system with the signal decoder included with the signal,
or in conventional operation with a 72760 control box.
The signal decoder can be installed under C Track or under the layout.
For digital operation, the configuration and the address can be assigned and tested before the installation of the signal.
Connections for controlling train movements and for 1 distant signal are on the signal decoder.
Height without base 78.0 mm /3-1/16".
Highlights:
- Entry signal for use before stations.
- An appropriate distant signal by itself is item no. 76480 and 76481, or a distant signal on the same mast with other signals, item no. 76495 and 76496.
