Center Gravity and Angle Gauge for planes

This set, consisting of three center-of-gravity scale modules and three angle gauges, is an unbeatable combination when it comes to optimally preparing fixed-wing aircraft for their next flight. First determine the center of gravity with the sensor scales, connect the angle gauges to the various control surfaces, and initial testing can begin via real-time view on your smartphone.

In SkyRC's "RC Gears" app, you can easily read the various measured weights and receive suggestions for optimal center-of-gravity setup. With the angle gauges on the control surfaces, you can track deflection angles via the app within a tolerance of 2° and monitor how much they change. Everything is engineered to give pilots maximum accuracy—conveniently from a smartphone. A true technological revolution!

Features:

• Highest precision for breathtaking flight performance
• Real-time display of all data via Bluetooth on smartphone
• Pinpoint adjustments possible
• Built-in 3.7V rechargeable lithium battery in each module
• Small, compact design for easy transport
• Simple center-of-gravity determination
• No more issues due to difficult handling or poorly balanced flights
• Maximum weight per scale: 20kg (60kg total)

Required App

• RC-Gears - iOS 9.0 or higher / Android 8.0 or higher
  Available languages: German, English, Japanese, Chinese

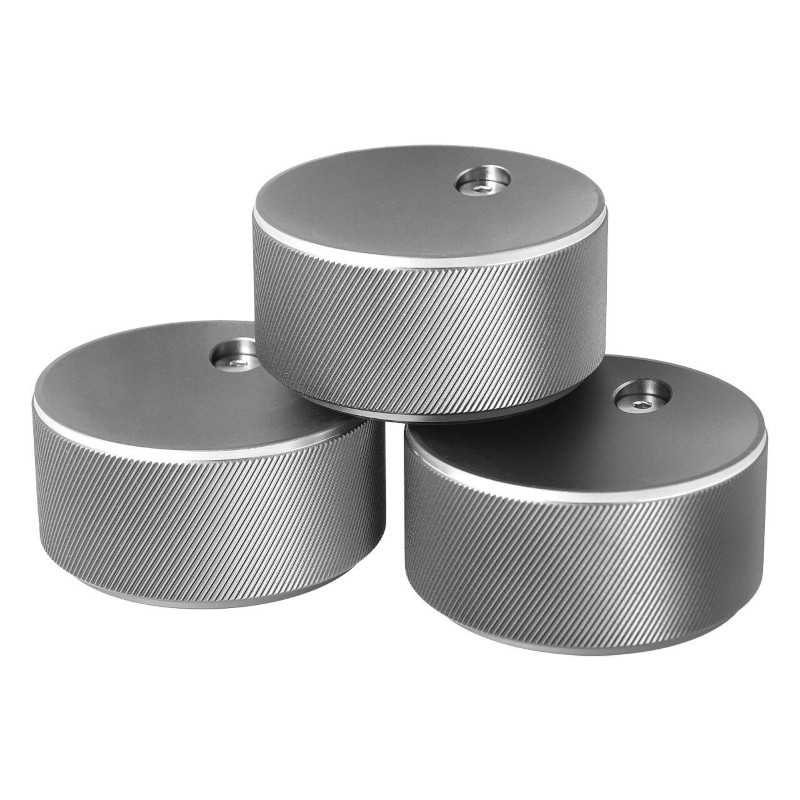

  Technical Specifications (Center of Gravity Scale)

  Input Voltage:	5V
  Input Current:	200-300mA
  Rating Voltage:	3.4V-4.2V
  Rating Current:	<15mA
  Low Voltage Protection:	<3.4V
  Max. Weight per Scale:	20kg
  Accuracy (Display):	±1g / 0.01oz
  Accuracy (Measurement):	±3g
  Port:	USB-C
  Dimensions:	66x33.5mm
  Weight (per scale):	165g

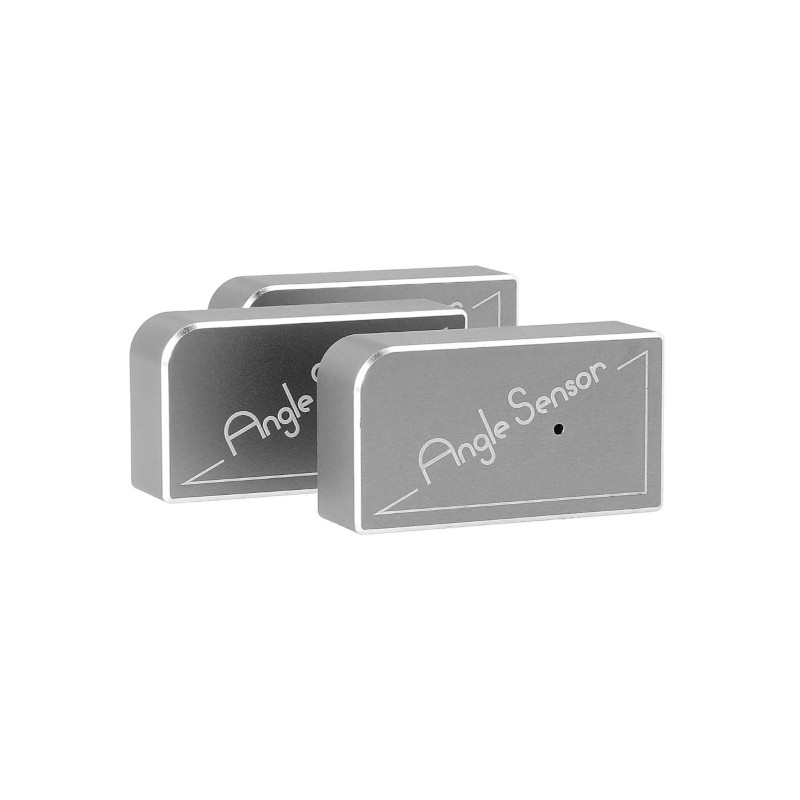

  Technical Specifications (Angle Gauge)

  Input Voltage:	5V
  Input Current:	200-300mA
  Rating Voltage:	3.4-4.2V
  Rating Current:	<10mA
  Low Voltage Protection:	<3.4V (flashing red)
  Measurement Accuracy:	±2°
  Travel Accuracy:	±0.1mm
  Port:	USB-C
  Operating Temperature:	0°C-50°C
  Dimensions:	48.1x25.6x12.6mm
  Weight (per module):	approx. 25g

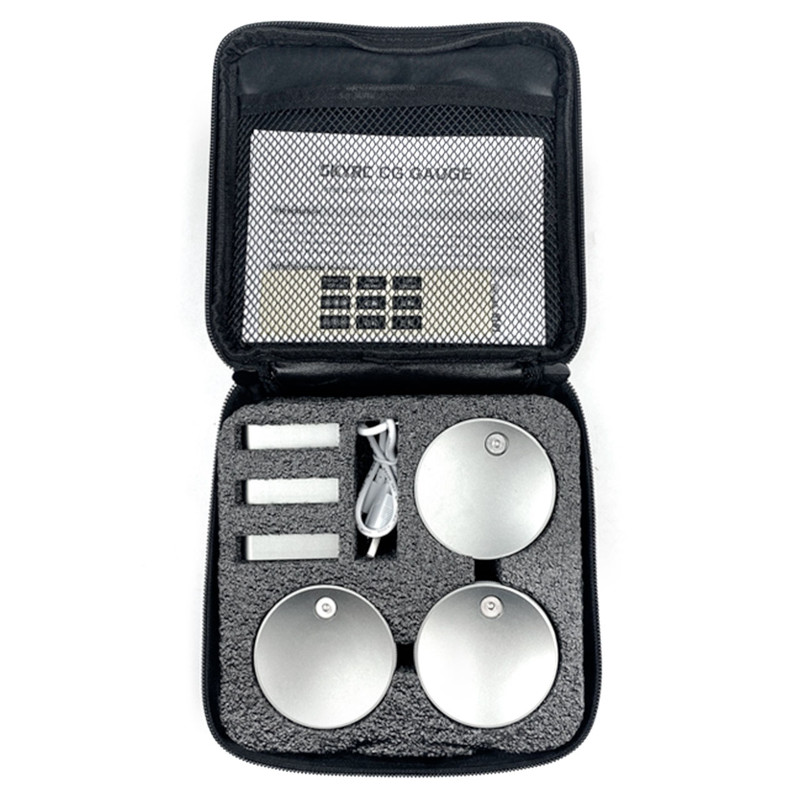

  Includes

  3x Center of Gravity Scale

  3x Angle Gauge

  1x USB-C Cable

  1x Manual
