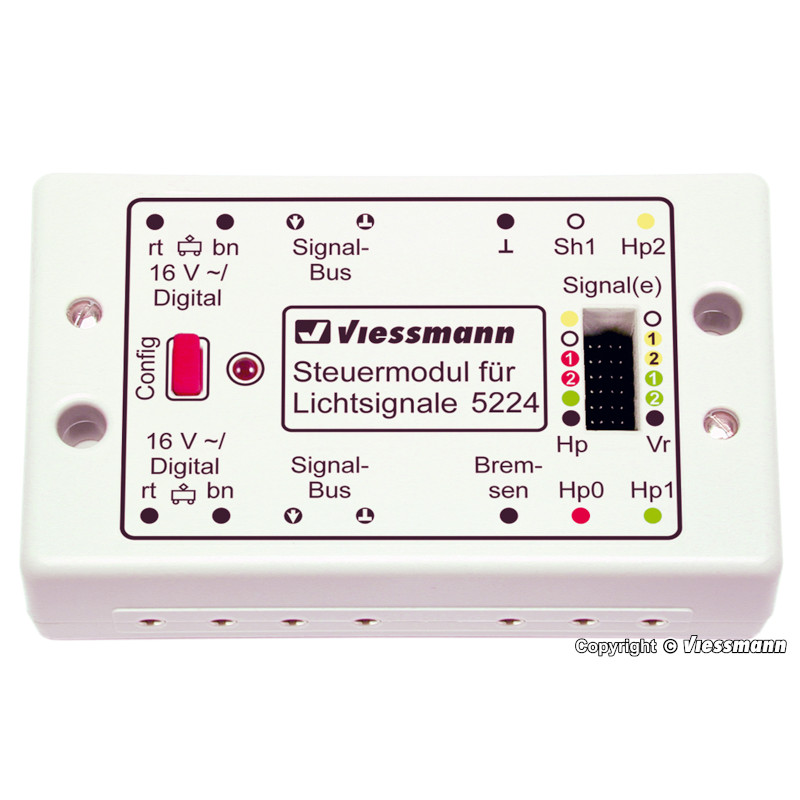

Besturingsmodule voor digitale en analoge Lichtseinen
- Merk: Viessmann
- Bestelnummer: VI5224
- Beschikbaarheid:Beperkt voorradig
- Voorraadniveau:
-
Prijs: 68,95€
- Excl. BTW: 56,98€
Voorziene leveringstermijn na directe betaling in België: tussen 01.07.26 en 06.07.26
Productveiligheidsverordening
Fabrikant:Viessmann Modelltechnik GmbH
Bahnhofstraße 2a
35116
Hatzfeld-Reddighausen
Germany
+49 (0)6452-93 400
info@viessmann-modell.com
Verantwoordelijke persoon in de EU:
Viessmann Modelltechnik GmbH
Bahnhofstraße 2a
35116
Hatzfeld-Reddighausen
Germany
+49 (0)6452-93 400
info@viessmann-modell.com
Omschrijving
The module offers an integrated digital decoder (Märklin-Motorola, NMRA-DCC)and is used to control 2 colour light signals (one home signal and one distant signal)
with LEDs and a common plus pole or bulbs, provided they do not draw more than 200 mA in total.
Therefore, it is suitable for all signal scales 0 up to Z (except for the Viessmann signals with multiplex-technology).
It can be activated in conventional mode via the push-button panels
items 5545, 5546 and 5547 or via a digital signal.
It is equipped with Viessmann Signalbus and can be configured for the following applications:
- 2 or several aspect colour light signal:
A 2-aspect home signal with the aspects proceed and stop requires the push-button panel item 5547 (for 4 signals) or a digital address.
A signal with 3 or 4 aspects with the additional aspects proceed slowly
and shunting permitted requires the push-button panel item 5546 (3-aspect, 2 signals)
resp. item 5545 (4-aspect, 2 signals) resp. a digital operation 2-aspect.
- Distant signal or block signal:
When configured as a block signal the module responds automatically to the status of the corresponding track sector.
This works only in conjunction with track occupancy detectors with continuous output.
Per signal sector up to 2 track sectors are required.
In this mode the module changes automatically to proceed if the following sector is clear (unoccupied).
If one of the two sectors is occupied, the module switches to stop.
- Own distant signal or distant signal on the same mast:
The signal module controls the main signal and the corresponding distant signal
or the distant signal of a following main signal mounted on the same mast.
In that case the distant signal will show the dark aspect when the main signal shows stop.
- Interrupt track supply or switch on brake generator when stop aspect is shown:
With the relay for automatic train control item 5228
the module can stop trains automatically either by interrupting the track voltage in front of the signal or
– more prototypical – with the digital brake module item 5232 (Märklin Motorola)
or a brake generator (for NMRA DCC).
This makes it possible in both analogue and digital mode to control the track by sections.
Signal with aspects stop and proceed slowly:
If required you can configure the module to permit these two aspects only.
In that case the module can be activated via the push-button panel item 5547 or a digital address.
Regardless if the module is triggered by push buttons
or track contacts the logic always assures that the red button has preference
if two or more devices provide conflicting commands.
